Stud Swage

Stud Swage

Regular price $5.11 NZD
Regular price Sale price $5.11 NZD
Sale Sold out
Shipping calculated at checkout.

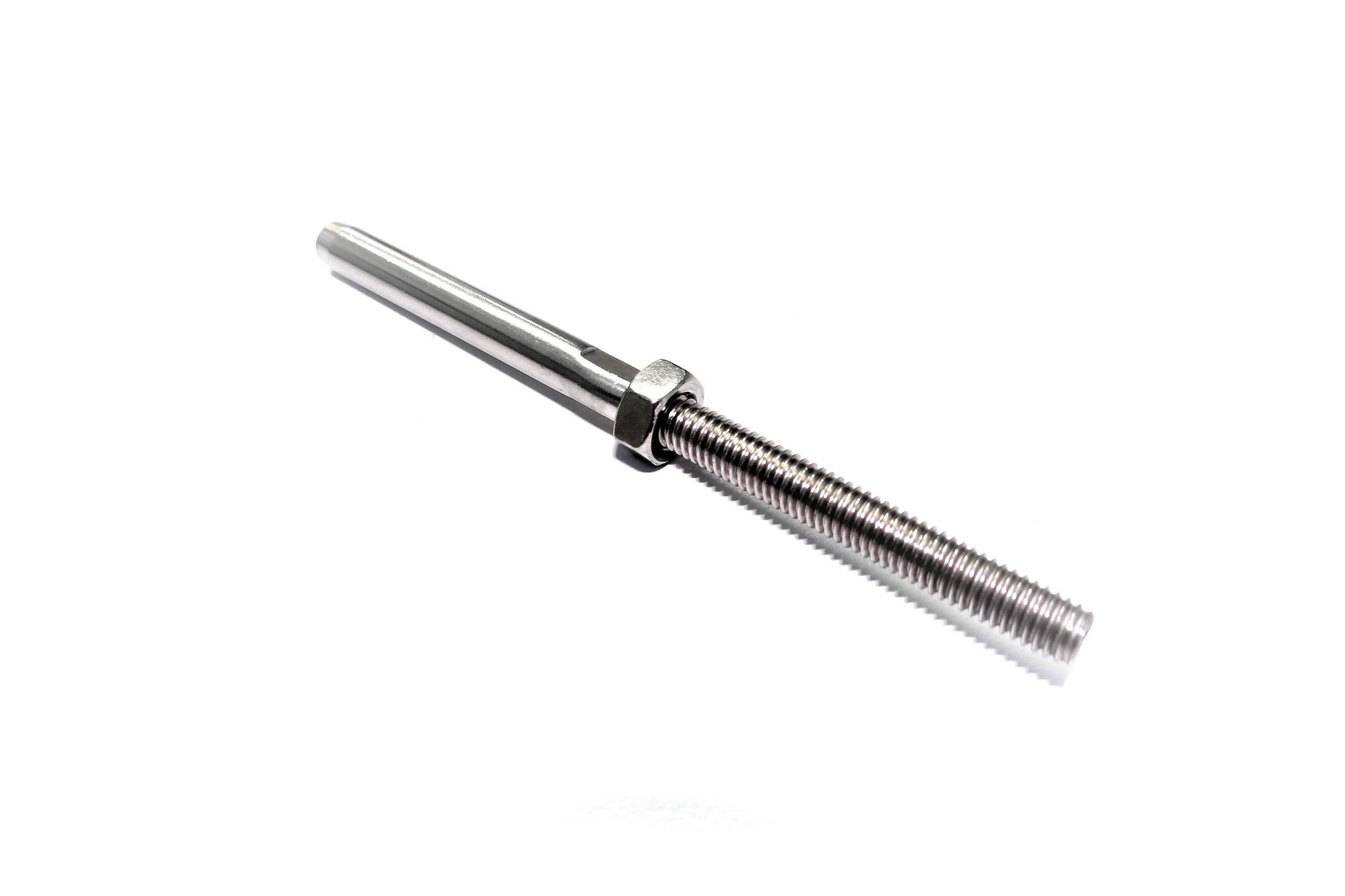

The stud swage is made from grade 316 stainless steel for maximum corrosion resistance.  This can be combined with a stainless steel grade 316 pelican hook, suitable for lifeline applications where a gate is desired.

Sizing Options

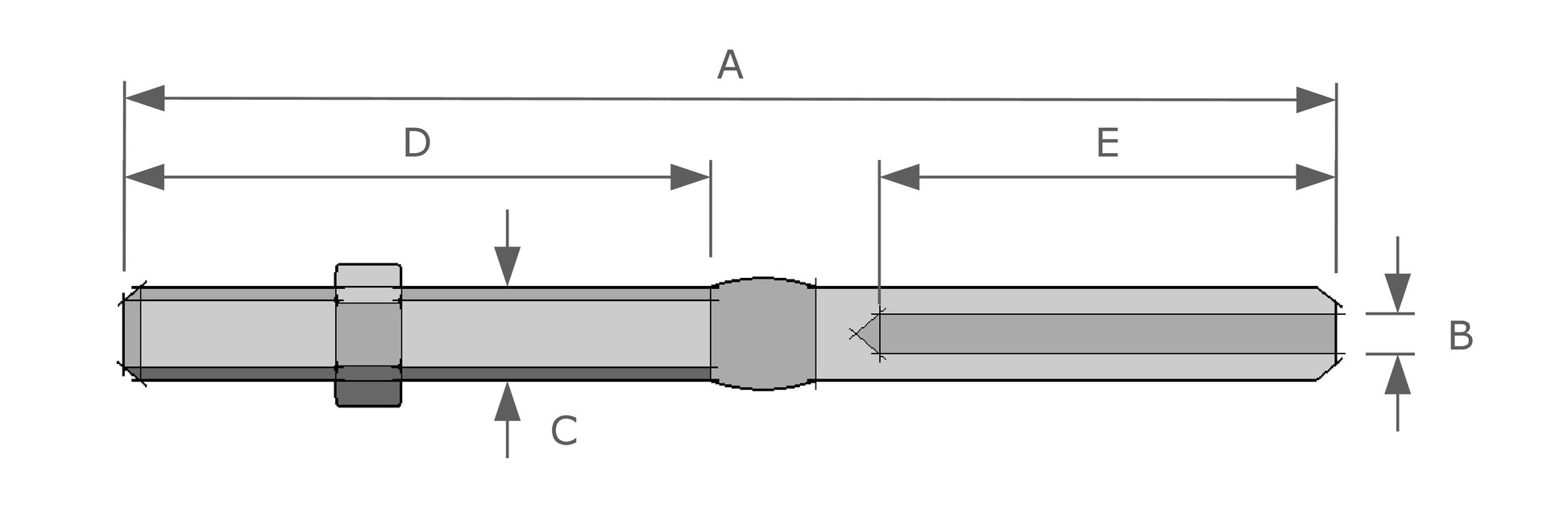

Item A (mm) Wire Size B (mm) Thread Size C (mm) D (mm) E (mm)
K7801-3x6 98 3 M6 50 40
K7801-4x6 110 4 M6 50 50
K7801-5x8 128 5 M8 60 60
K7801-6x12 163 6 M12 79 66



Safe Working Load (SWL) guide = 25% of Breaking Load.
It is the user’s responsibility to determine the SWL.

MEASUREMENTS MAY VARY SLIGHTLY, IF THEY ARE CRITICAL PLEASE CHECK THEM.
