Triangle Ring Cross Bar

$5.23 NZD

Sale Sold out

Shipping calculated at checkout.

Quantity

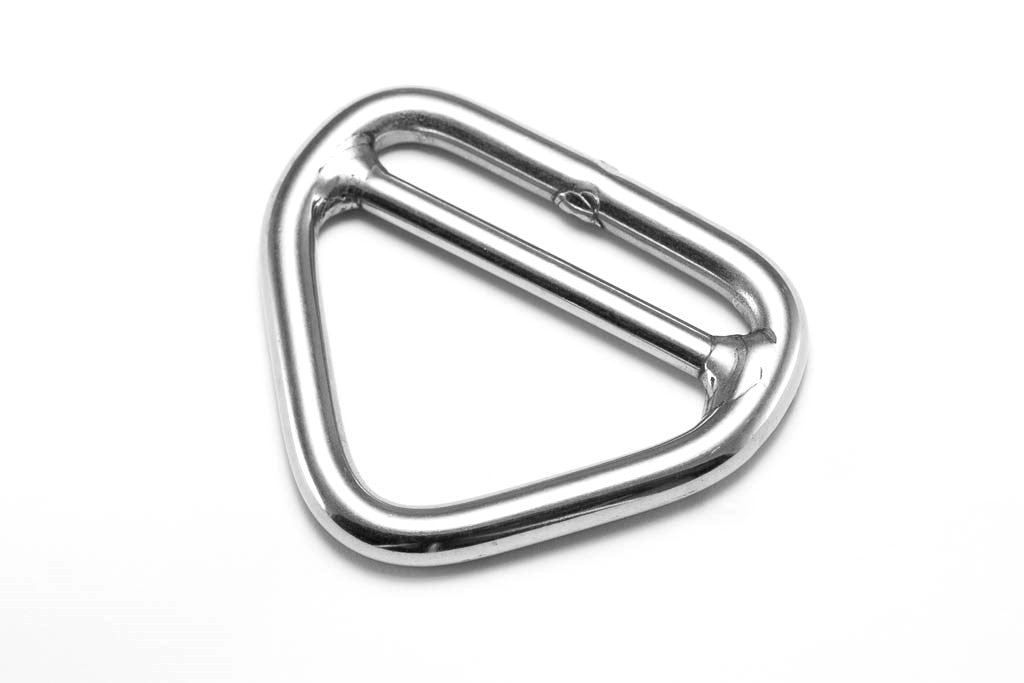

The stainless steel marine grade 316 triangle ring with welded bar to act as a double bar triangle. Excellent for webbing in the shade sail industry.

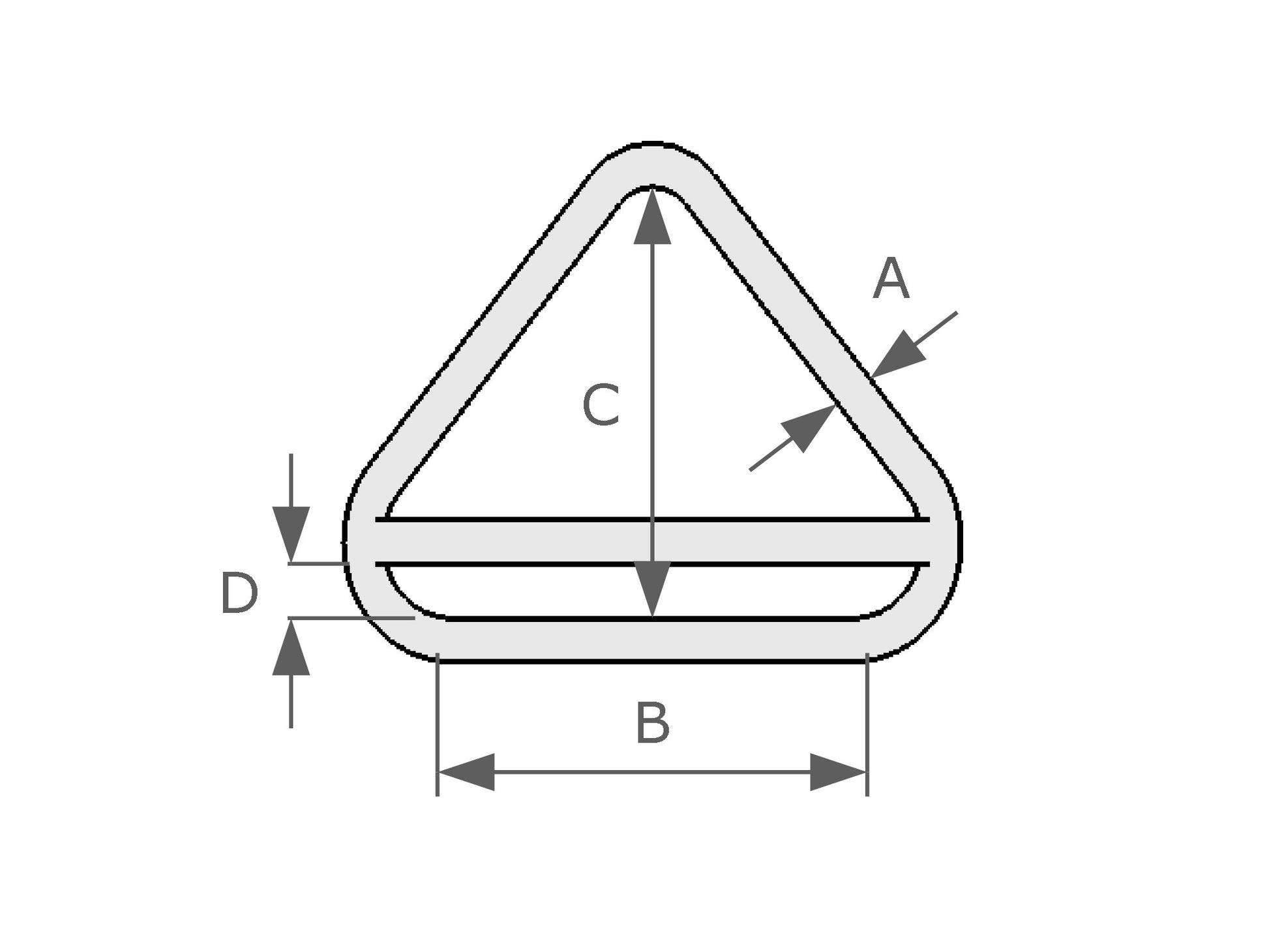

Item	A (mm)	B (mm)	C (mm)	D (mm)
K3251-5	5	41	41.5	4.8
K3251-6	6	50	40.5	5.4
K3251-8	8	60	45.5	6.0

Safe Working Load (SWL) guide = 25% of Breaking Load.
It is the user’s responsibility to determine the SWL.

MEASUREMENTS MAY VARY SLIGHTLY, IF THEY ARE CRITICAL PLEASE CHECK THEM.
