Square Eye Plate
Square Eye Plate
Regular price
$4.22 NZD
Regular price
Sale price
$4.22 NZD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

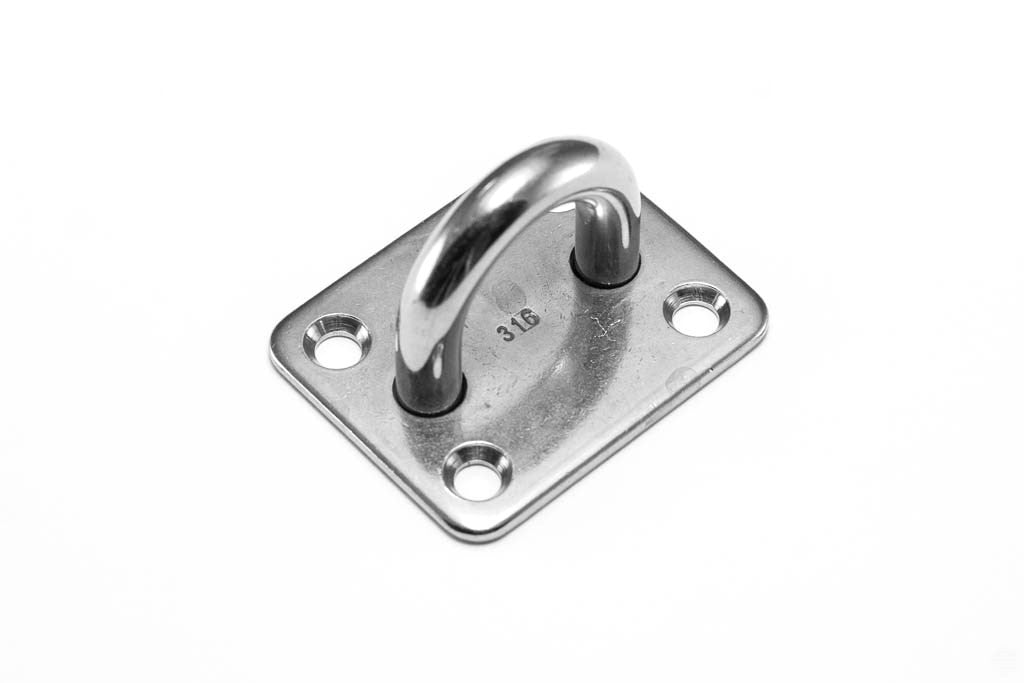

Stainless steel 316 square Eye plate also known as an Pad Eye are designed to screw into all types of panels for different applications. (Requires 4 x screws)

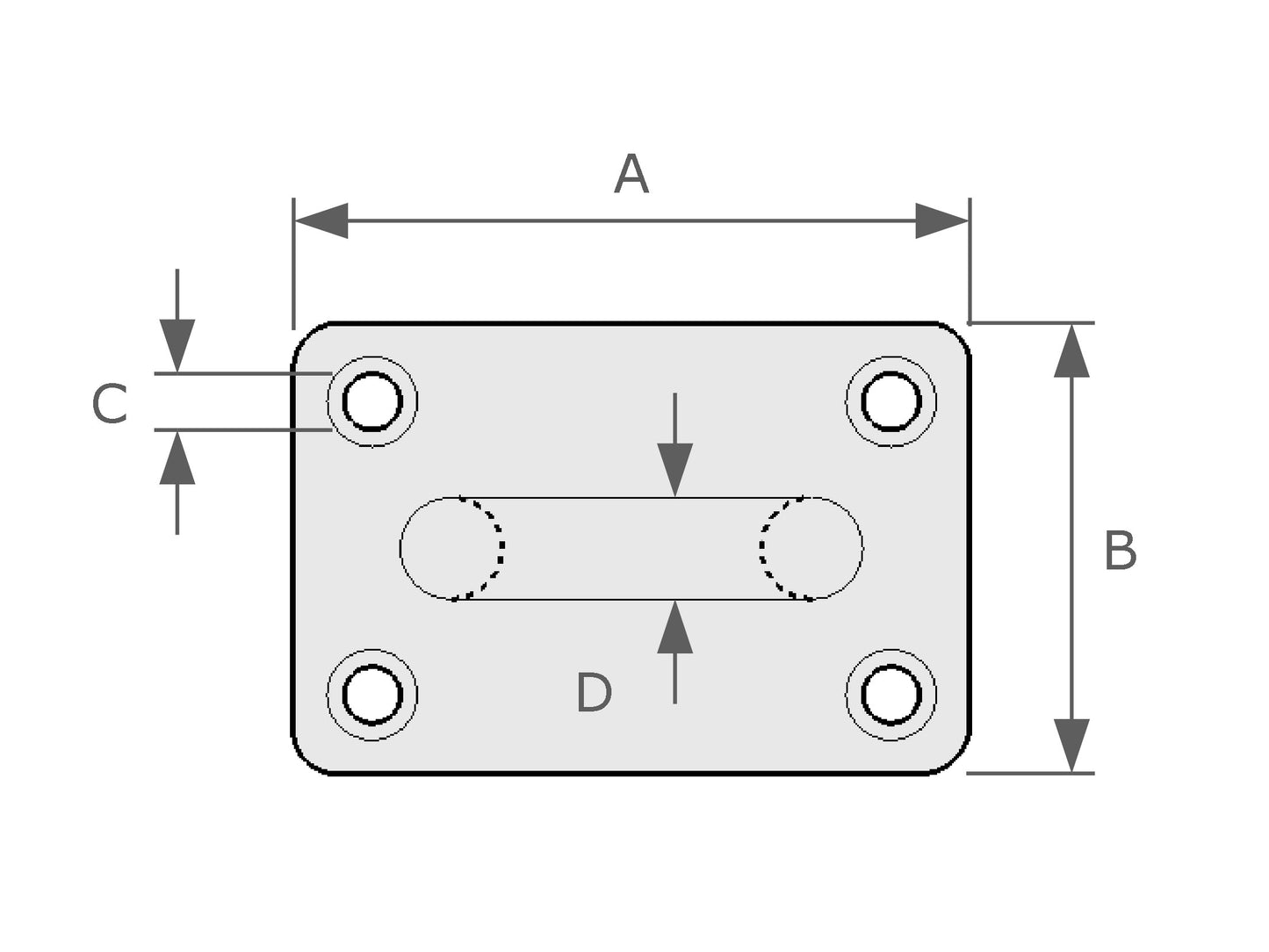

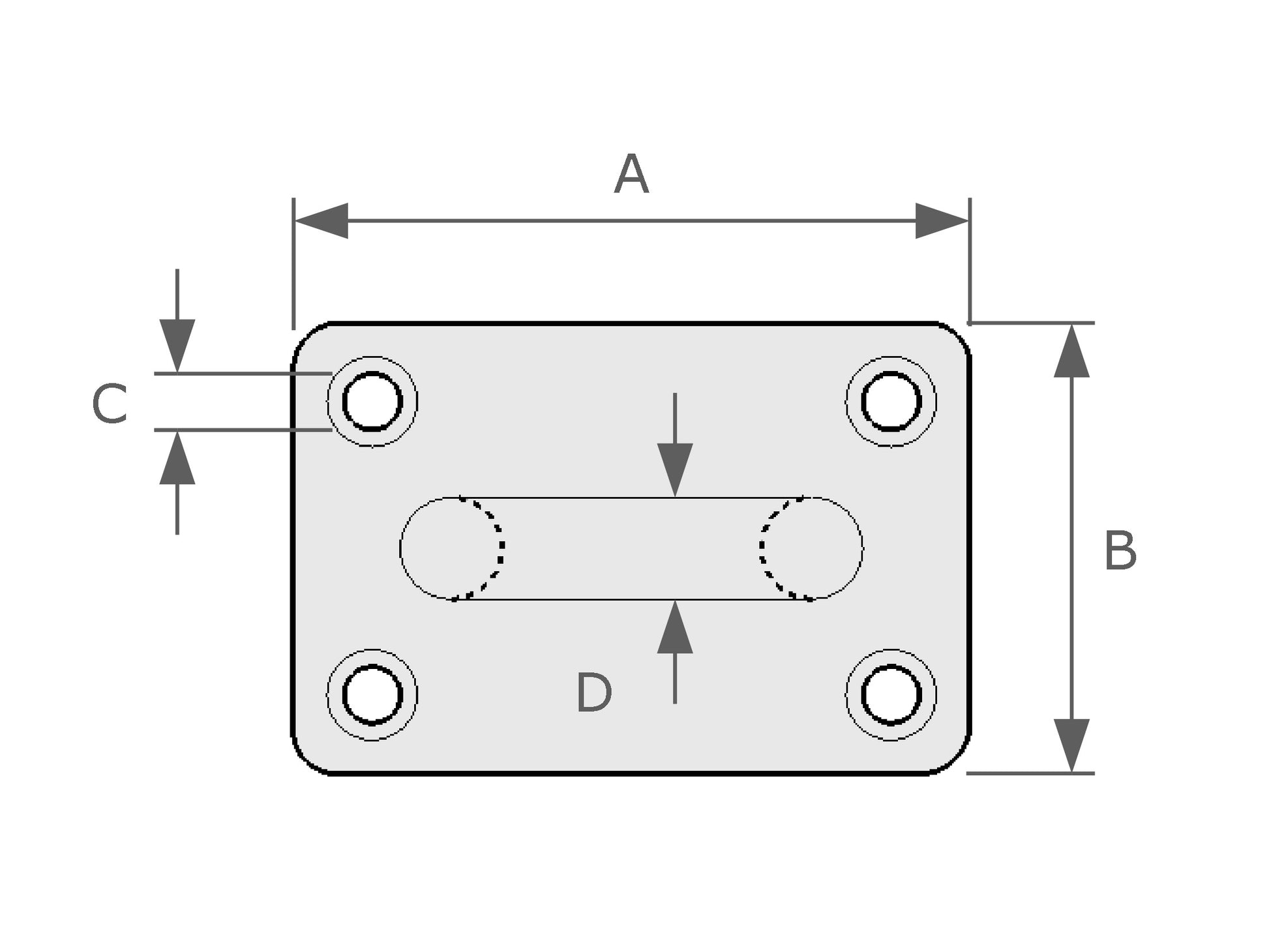

Sizing Options
Item | A (mm) | B (mm) | C (mm) | D (mm) |
---|---|---|---|---|
K321-5 | 35 | 30 | 4 | 5 |
K321-6 | 40 | 35 | 5 | 6 |
K321-8 | 50 | 40 | 6 | 8 |
K321-10 | 60 | 48 | 6 | 10 |
MEASUREMENTS MAY VARY SLIGHTLY, IF THEY ARE CRITICAL PLEASE CHECK THEM.
