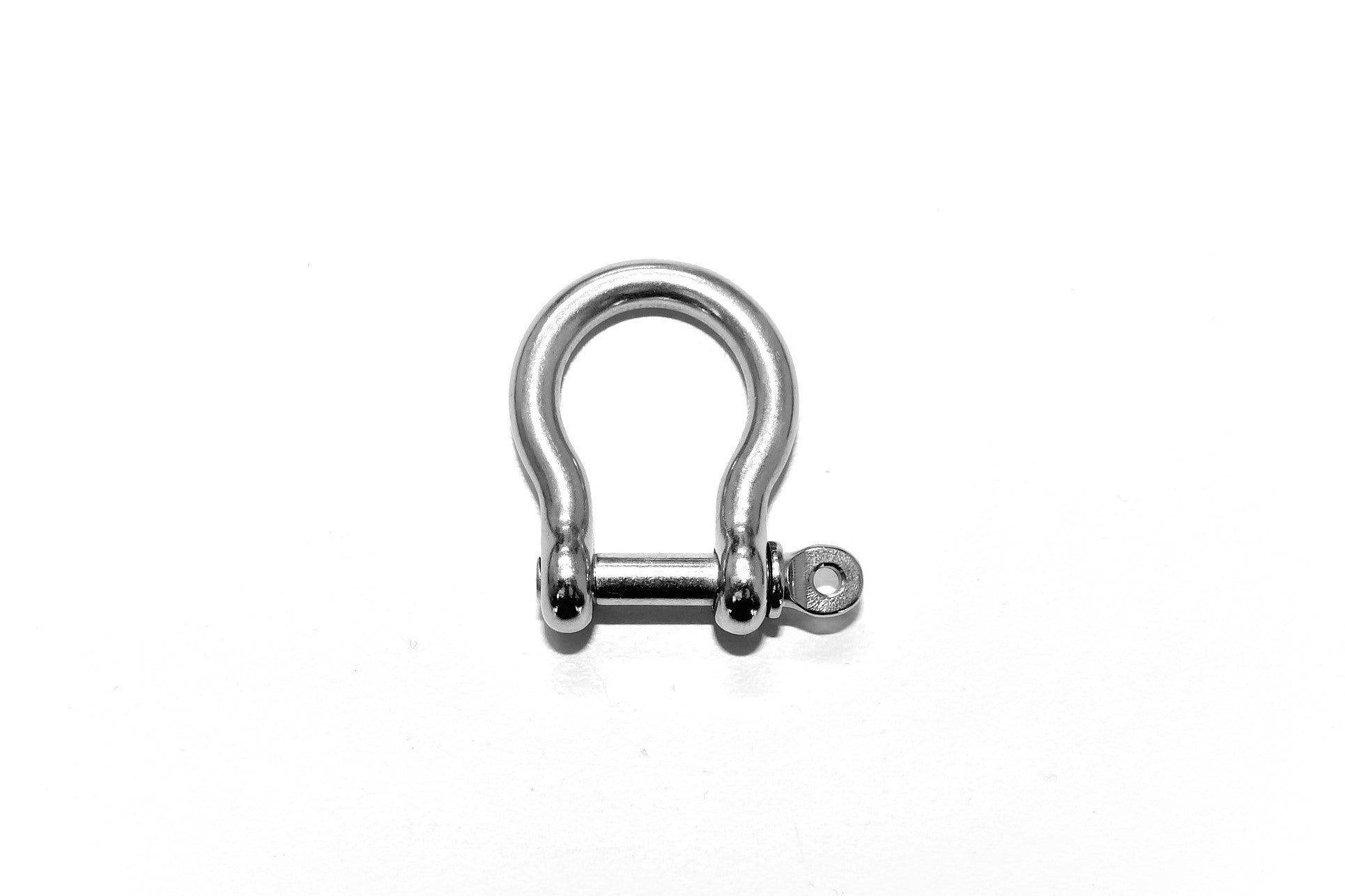

A Bow Shackle or Anchor Shackle, as they are sometimes known, has a larger curve in the loop. This allows the shackle to handle a load from more angles, lowering the amount of side load on the shackle.

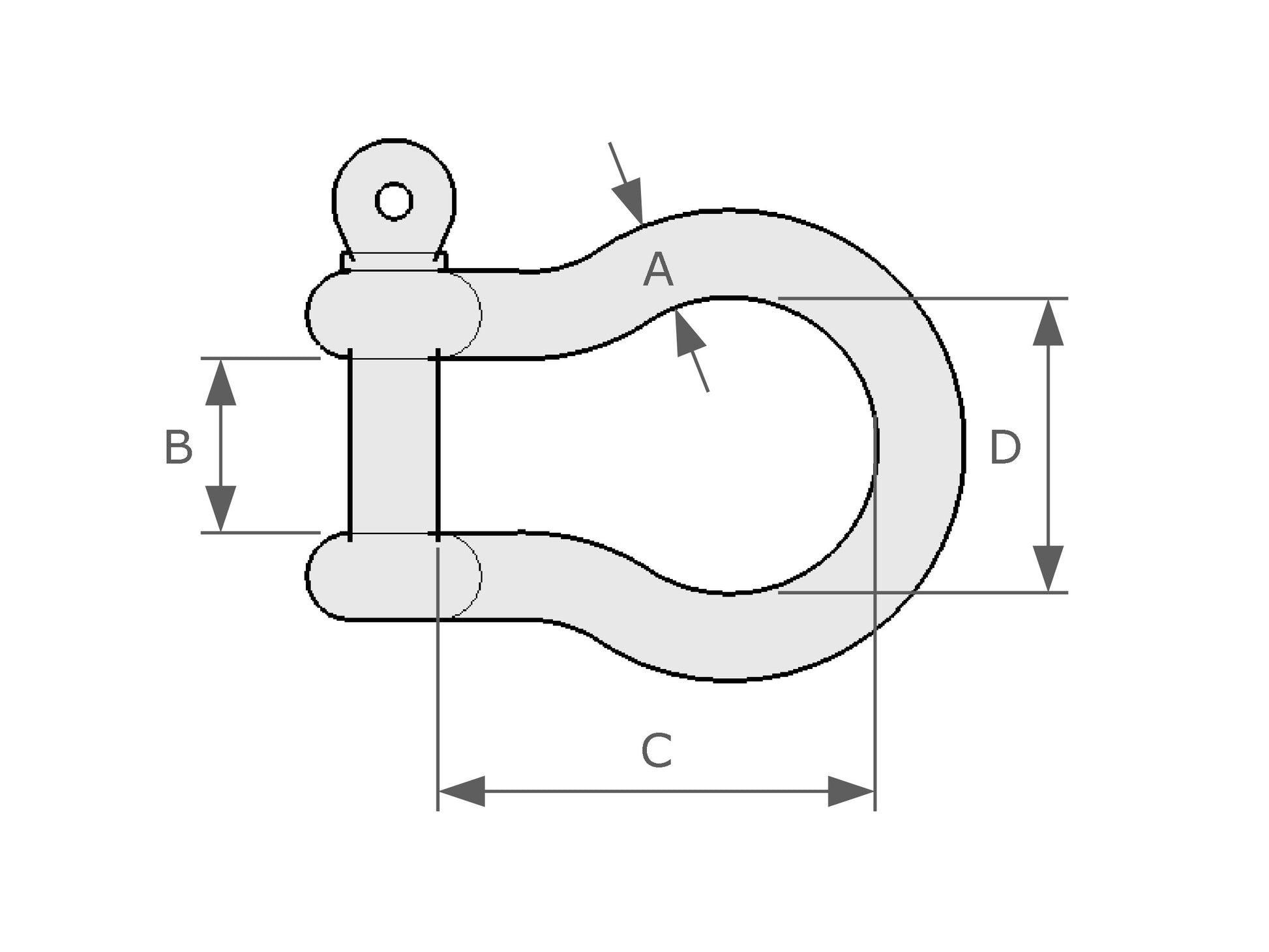

Sizing Options
Item
A (mm)
B (mm)
C (mm)
D (mm)
K370-4
4
9
19
13
K370-5
5
12
23
18
K370-6
6
14
25
20
K370-8
8
15
40
25
K370-10
10
20
45
35
K370-12
12
25
52
40
MEASUREMENTS MAY VARY SLIGHTLY, IF THEY ARE CRITICAL PLEASE CHECK THEM.
